Caterham De Dion Axle Hub Shims *

Manufactured from precision laser cut stainless steel, use of the DPR Motorsport shims is a unique engineering solution to ensure highly accurate set-up of toe and camber settings for the rear hubs on De Dion axle Caterhams.

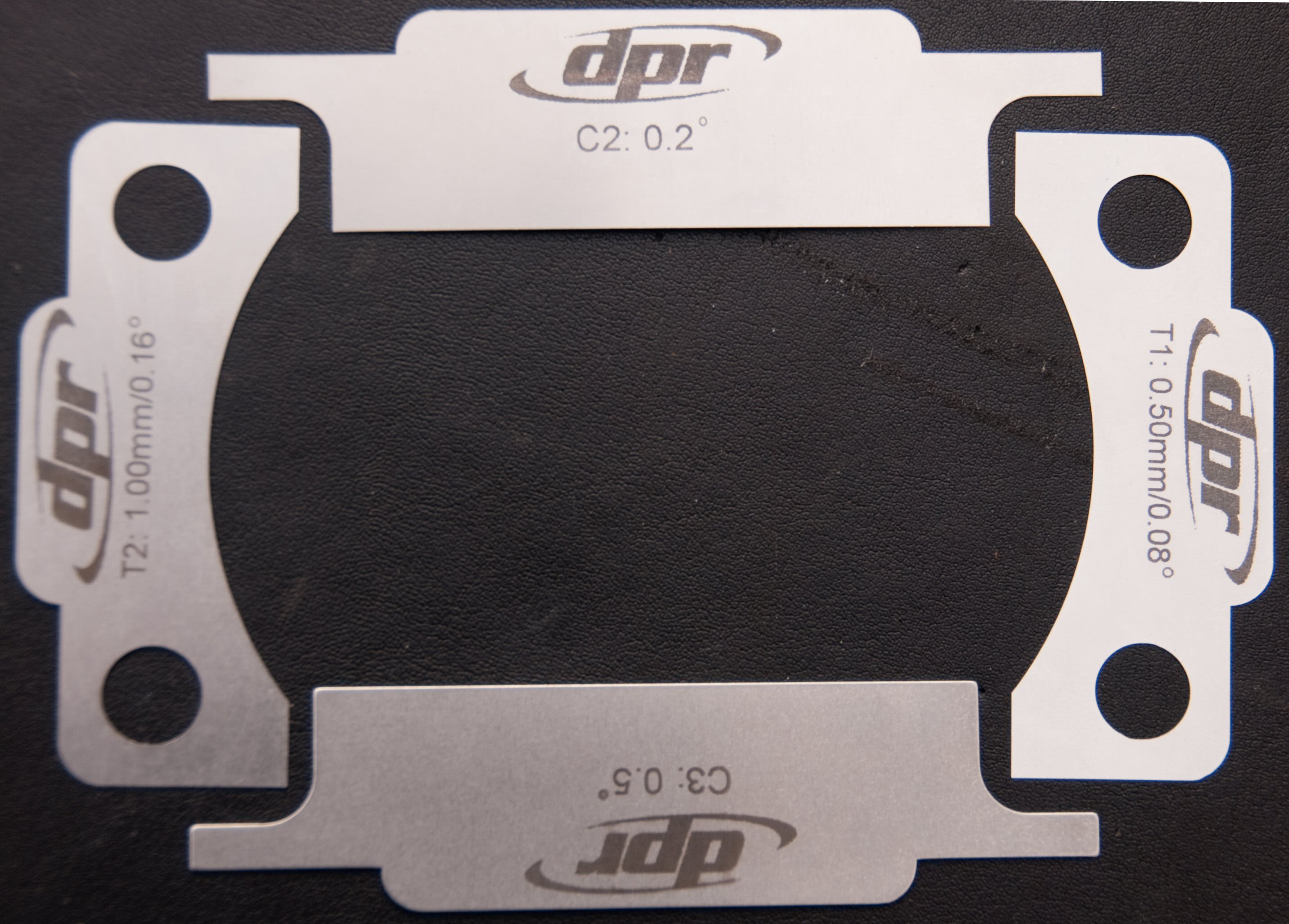

These shims have been designed by us based on our experience with Caterham race set-up. As well as being essential for accurate race car set-up these shims are ideal where the use of slick tyres requires a rear camber change or to allow for different track conditions.  DPR shims have a specific shape to facilitate rapid and reliable set up changes and ensure a consistent fit between the hub and De Dion ear. The DPR shim set (2 off each of 5 shims) should be sufficient for most alignment situations.

Our shims have sufficient depth, particularly important for the toe shims, to ensure that these shims will not distort during use. The holes in the toe shims uniquely ensure that these shims remain in their required location without the risk of moving out of position. The tabs on the shims assist rapid at-circuit adjustment and the camber shims can be removed or added without any risk of changing the adjustment for toe.

The DPR shim set has different shim thicknesses to enable fine adjustment of rear toe or camber. Two adjustment are provided for toe and three for camber; the shims have recently been upgraded to show the specific adjustment provided by that shim. Our design should ensure that fitment of toe or camber shims will produce the marked change for that shim without the fitment of a toe shim impacting camber or camber fitment impacting toe; thus avoiding wasting time in repeated measurement and shim changes to obtain the required change.

These shims can be ordered stand alone or are provided as part of a full flat-floor set-up at our workshop.

Place an order - DPR shim set (10 Shims - 2 x each of 5 sizes)

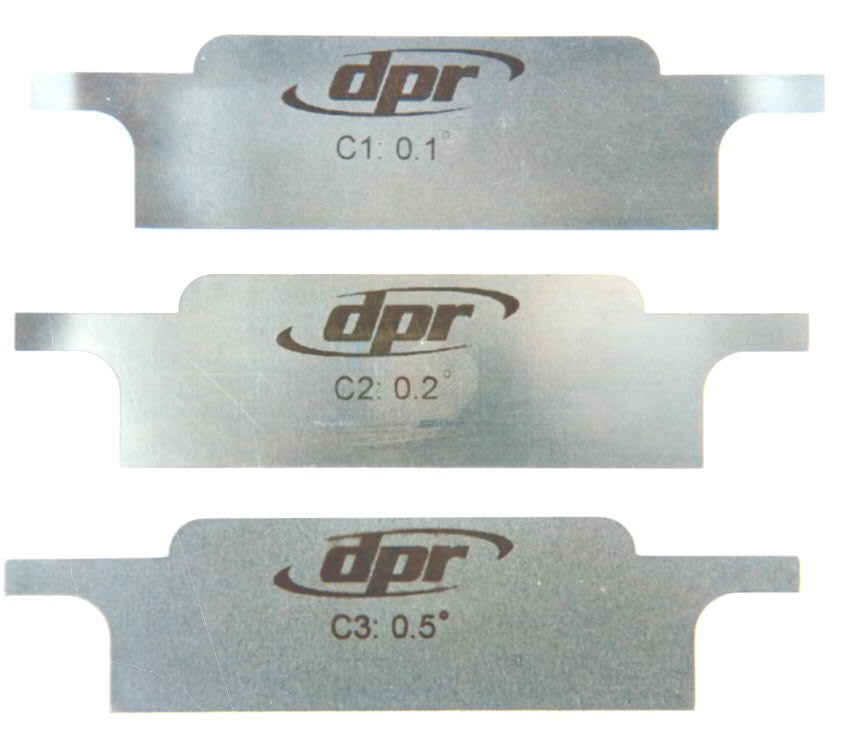

Camber Shim Toe Shim
Shim Thickness Degrees Shim Thickness Toe Change Degrees
C1 0.1mm 0.1 T1 0.12 0.5mm 0.08
C2 0.2mm 0.2 T2 0.25 1.0mm 0.16
C3 0.5mm 0.5
Note the above data assumes use of a 13″ rim.

* Note: Due to the stresses involved in motor sport, supply of these shims does not imply any warranty by DPR Motorsport as to suitability.
